Technical Specs

Type

 N/A Tube Adapter

Tube Stub Size

 N/A 1/4”

Conn.2 Size

 N/A 1/4”

Conn.2 Type

 N/A Female 37º Flare

Body Material

 N/A Stainless Steel 316

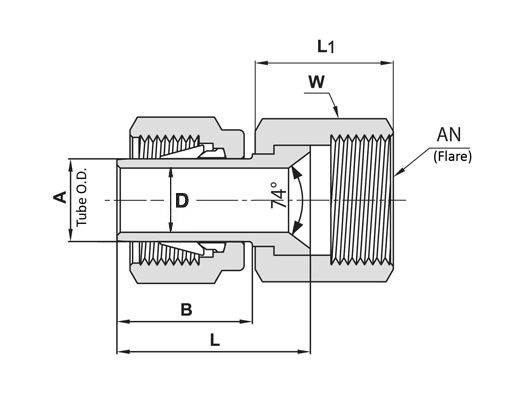

Dimensions


761LFL_AS_Tech1

A

 N/A 1/4 in6.35 mm

AN

 N/A 1/4 in6.35 mm

B

 N/A 0.62 in15.75 mm

D

 N/A 0.17 in4.2 mm

L

 N/A 0.84 in21.33 mm

L1

 N/A 0.61 in15.5 mm

W

 N/A 9/16 in
