Technical Specs

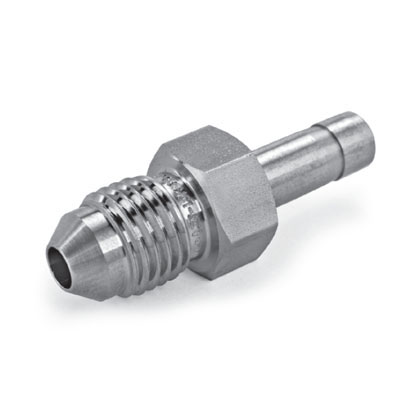

Type

 N/A Tube Adapter

Tube Stub Size

 N/A 3/8”

Conn.2 Size

 N/A 1/4”

Conn.2 Type

 N/A Male 37º Flare

Body Material

 N/A Stainless Steel 316

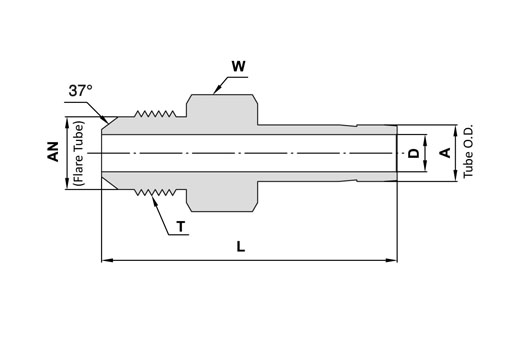

Dimensions


739LTFL_S_Tech1

A

 N/A 3/8 in9.52 mm

AN

 N/A 1/4 in6.35 mm

D

 N/A 0.17 in4.2 mm

L

 N/A 1.53 in38.86 mm

T

 N/A 7/16-20 UNF

W

 N/A 1/2 in12.7 mm
