Technical Specs

Type

 N/A Tube Adapter

Tube Stub Size

 N/A 1”

Conn.2 Size

 N/A 1”

Conn.2 Type

 N/A Male 37º Flare

Body Material

 N/A Stainless Steel 316

Dimensions

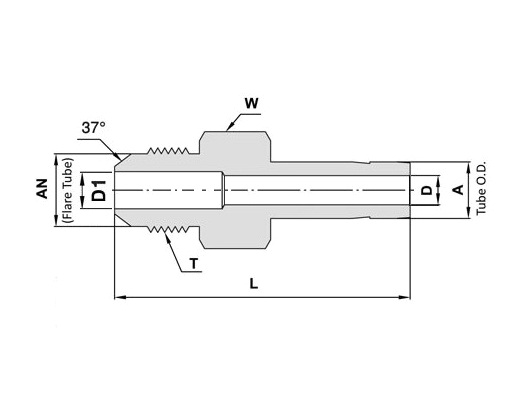

739LTFL_BS_Tech1

A

 N/A 1 in25.4 mm

AN

 N/A 1 in25.4 mm

D

 N/A 0.80 in20.32 mm

D1

 N/A 0.85 in21.5 mm

L

 N/A 2.58 in65.53 mm

T

 N/A 1-5/16-12 UN

W

 N/A 1-3/8 in34.9 mm
