Request Information
Unit of Measure
Items
762HL_S_Enlarge

St.St. 316 Union Connector, One-Lok® Tube Fitting 6mm
762HL_S_Enlarge

St.St. 316 Union Connector, One-Lok® Tube Fitting 8mm
762HL_S_Enlarge

St.St. 316 Union Connector, One-Lok® Tube Fitting 10mm
762HL_S_Enlarge

St.St. 316 Union Connector, One-Lok® Tube Fitting 12mm
762HL_S_Enlarge

St.St. 316 Union Connector, One-Lok® Tube Fitting 14mm
Type N/A Union Connector
Conn.1 Size N/A 6 mm N/A 8 mm N/A 10 mm N/A 12 mm N/A 14 mm
Connector Type N/A One-Lok® Tube Fitting
Conn.2 Size N/A 6 mm N/A 8 mm N/A 10 mm N/A 12 mm N/A 14 mm
End Type 2 N/A One-Lok® Tube Fitting
Body Material N/A Stainless Steel 316

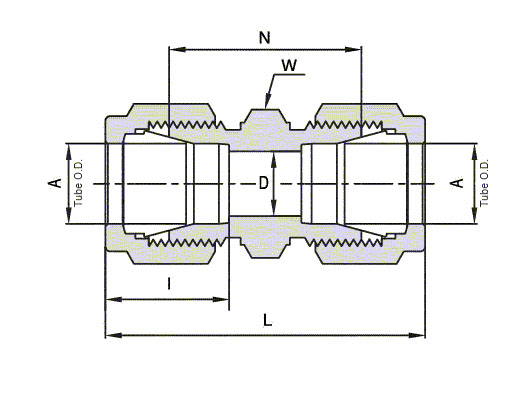

Dimensional Drawing N/A
762HL_S_Tech1
A N/A 6 mm N/A 8 mm N/A 10 mm N/A 12 mm N/A 14 mm
A1 N/A
D N/A 4.8 mm N/A 6.4 mm N/A 7.9 mm N/A 9.5 mm N/A 11.1 mm
I N/A 15.3 mm N/A 16.2 mm N/A 17.2 mm N/A 22.8 mm N/A 24.4 mm
I1 N/A
L N/A 41 mm N/A 43.2 mm N/A 46.2 mm N/A 51.2 mm N/A 52 mm
N N/A 26.2 mm N/A 28.2 mm N/A 31 mm N/A 31 mm N/A 31.8 mm
W N/A 14 mm N/A 15 mm N/A 18 mm N/A 22 mm N/A 24 mm
