Unit of Measure

Technical Specs

Type

 HP20 - Med Temp. Med Flow - 2 Port

Connection Size

 1/4”

Connection Type

 swivel Female Face Seal

Body Size

 1/4”

Max Pressure

 21 MPa3060 psi

CV

 0.27

Body Material

 Bar Stock SS 316L Vim/Var

Temperature Range

 -10ºC to 60ºC

Leak Rate - Across Seat

 <= 1·10-9 atm · cc/sec (He)

Leak Rate - Inboard

 <= 3·10-11 atm · cc/sec (He)

Actuation

 Lever Handle

Seat Type

 PCTFE Seat

Flow Designation

 Scheme 0

Dimensions

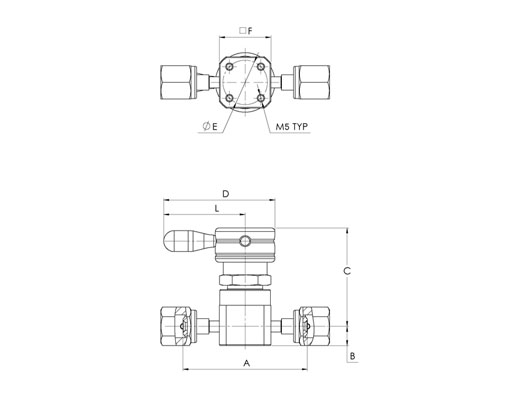

P20HF_Tech1

A

 2.78 in70.6 mm

B

 0.43 in11 mm

C

 2.21 in56.2 mm

D

 2.5 in63.5 mm

E

 1 in25.4 mm

F

 1.16 in29.4 mm

L

 1.83 in46.5 mm
