Unit of Measure

Technical Specs

Type

 2LH - Med Temp. Low Flow, Soft Seat

Connection Size

 1/4”

Connection Type

 swivel Female Face Seal

Body Size

 1/4”

Max Pressure

 21 MPa3060 psi

CV

 0.1

Body Material

 Forged SS 316L

Leak Rate - Across Seat

 <= 3·10-10 Pa · m3/sec (He)

Leak Rate - Inboard

 <= 3·10-12 Pa · m3/sec (He)

Actuation

 Round Handle

Dimensions

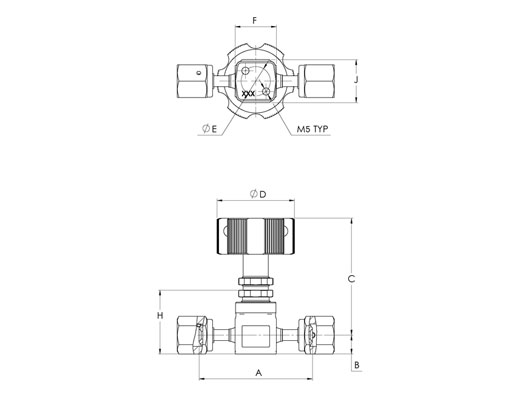

2LHRF_Tech1

A

 2.60 in66 mm

B

 0.43 in11 mm

C

 2.68 in68 mm

D

 1.77 in45 mm

E

 0.67 in17 mm

F

 0.94 in24 mm

H

 1.42 in36 mm

J

 0.98 in25 mm
