Technical Specs

Type

 N/A HM20 - High Temp. Med Flow - 2 Port

Connection Size

 N/A 1/2”

Body Material

 N/A Bar Stock SS 316L Vim/Var

Actuation

 N/A Round Handle

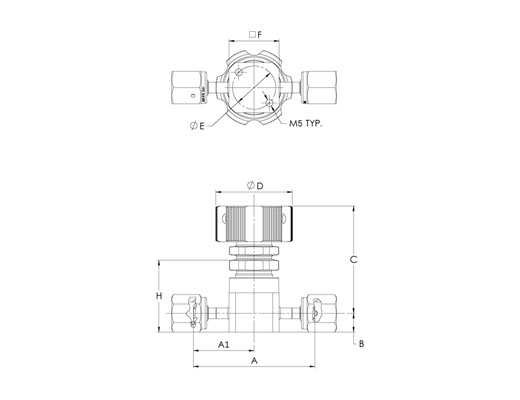

Dimensions


20RFF_Tech1

A

 N/A 3.15 in80 mm

A1

 N/A 1.57 in40 mm

B

 N/A 0.43 in11 mm

C

 N/A 2.48 in63 mm

D

 N/A 1.77 in45 mm

E

 N/A 1 in25.4 mm

F

 N/A 1.16 in29.4 mm

H

 N/A 1.57 in40 mm
