Request Information
Unit of Measure

Technical Specs

Type

 N/A HM20 - High Temp. Med Flow - 2 Port

Connection Size

 N/A 3/8”

Body Material

 N/A Bar Stock SS 316L Vim/Var

Actuation

 N/A ISLT Oval Handle

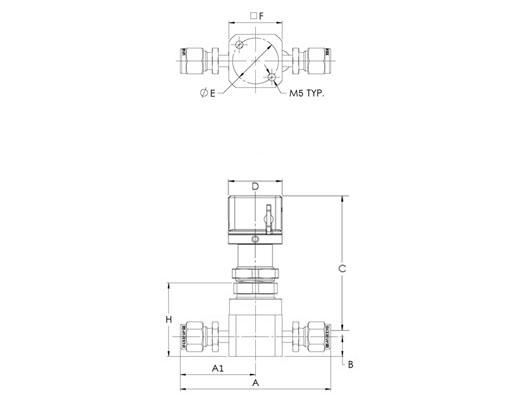

Dimensions


20SLL_Tech1

A

 N/A 4.9 in124.4 mm

A1

 N/A 2.45 in62.2 mm

B

 N/A 0.43 in11 mm

C

 N/A 3 in76 mm

D

 N/A 1.1 in28 mm

E

 N/A 1 in25.4 mm

F

 N/A 1.16 in29.4 mm

H

 N/A 1.57 in40 mm
