Unit of Measure

Technical Specs

Type

 N/A HM20 - High Temp. Med Flow - 2 Port

Connection Size

 N/A 1/4”

Body Material

 N/A Bar Stock SS 316L Vim/Var

Actuation

 N/A Actuator (300 psi)

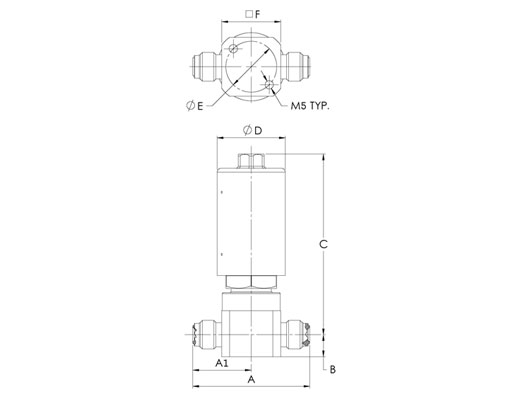

Dimensions


20CNN_Tech1

A

 N/A 2.3 in58.4 mm

A1

 N/A 1.15 in29.2 mm

B

 N/A 0.43 in11 mm

C

 N/A 3.5 in89 mm

D

 N/A 1.34 in34 mm

E

 N/A 1 in25.4 mm

F

 N/A 1.16 in29.4 mm
