Unit of Measure

Technical Specs

Type

 2LD - Low-Med Temp. High Flow

Connection Size

 3/4”

Connection Type

 swivel Female Face Seal

Body Size

 3/4”

Actuation

 Round Handle

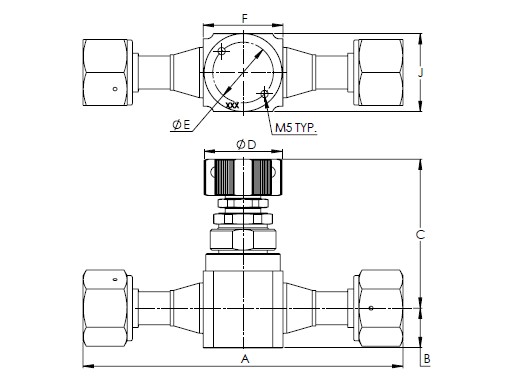

Dimensions


2LDRFV12_Tech1

A

 5.75 in146 mm

B

 0.91 in23 mm

C

 3.39 in86 mm

D

 1.77 in45 mm

E

 1.38 in35 mm

F

 1.81 in46 mm

J

 1.77 in45 mm
