Technical Specs

Type

 N/A Angle

Connection Size

 N/A 1/8”

Connection Type

 N/A Male NPT to Let-Lok® Tube Fitting

Max Pressure

 N/A 20.7 bar300 psi

Body Material

 N/A Stainless Steel 316

CV

 N/A 0.11

Temperature Range

 N/A -20 to 200ºF (-28 to 93ºC)

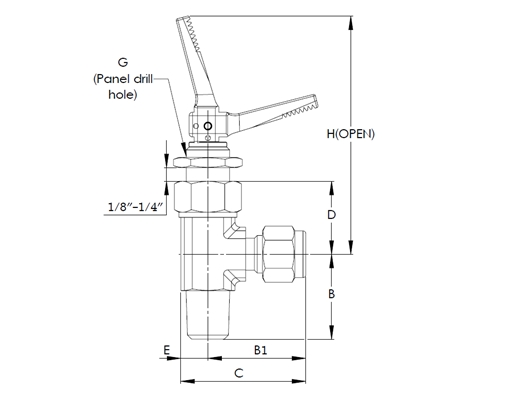

Dimensions


H1295SSNLA_Tech1

B

 N/A 0.86 in21.8 mm

B1

 N/A 0.98 in24.9 mm

C

 N/A 1.29 in32.8 mm

D

 N/A 0.85 in21.8 mm

E

 N/A 0.31 in7.95 mm

G

 N/A 0.53 in13.5 mm

H

 N/A 2.57 in65.5 mm

Orifice

 N/A 0.09 in2.3 mm
