Technical Specs

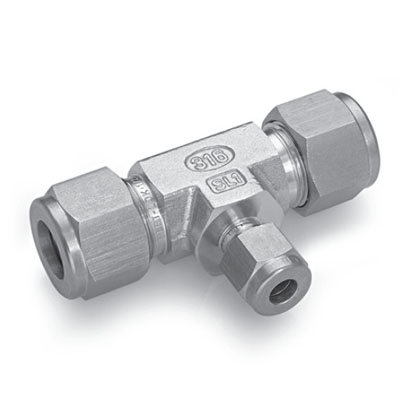

Type

 N/A Union Tee‎

Left Size

 N/A 1-1/4”

Connector Type

 N/A Let-Lok® Tube Fitting

Right Size (Run)

 N/A 1-1/4”

Bottom Size (Branch)

 N/A 1”

Body Material

 N/A Stainless Steel 316

Dimensions


764LRB_S_Tech1

A

 N/A 1-1/4 in31.75 mm

A1

 N/A 1 in25.4 mm

D

 N/A 27.7 in1.09 mm

D1

 N/A 0.88 in22.35 mm

E

 N/A 2.67 in67.8 mm

E1

 N/A 2.17 in55.1 mm

I

 N/A 1.62 in41.2 mm

I1

 N/A 1.23 in31.2 mm

N

 N/A 1.75 in44.5 mm

N1

 N/A 1.69 in42.9 mm

W

 N/A 1-11/16 in42.9 mm
