Unit of Measure

Technical Specs

Type

 HMSC - Compact Surface Mount

Body Size

 1/4”

Max Pressure

 1 MPa150 psi

CV

 0.3

Body Material

 Bar Stock SS 316L Vim/Var

Leak Rate - Across Seat

 <= 1·10-9 atm · cc/sec (He)

Leak Rate - Inboard

 <= 3·10-11 atm · cc/sec (He)

Actuation

 Actuator

Valve Designation

 2 Port

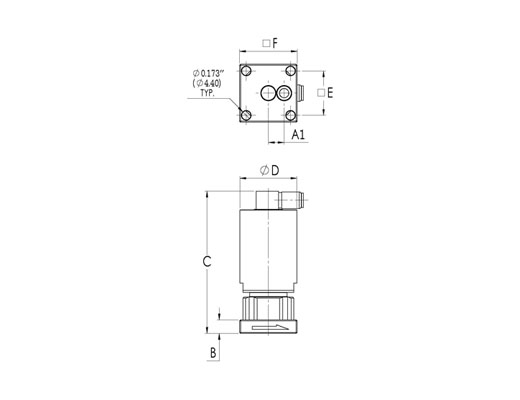

Dimensions


SCM20C_Tech1

A1

 0.305 in7.75 mm

B

 0.26 in6.6 mm

C

 2.75 in69.8 mm

D

 1.1 in28 mm

E

 0.86 in21.74 mm

F

 1.12 in28.4 mm
