Technical Specs

Type

 N/A 2LN - Hybrid Surface Mount, Soft Seat

Body Size

 N/A 1/4”

Max Pressure

 N/A 1 MPa150 psi

CV

 N/A 0.27

Body Material

 N/A Bar Stock SS 316L

Leak Rate - Across Seat

 N/A <= 3·10-10 Pa · m3/sec (He)

Leak Rate - Inboard

 N/A <= 3·10-12 Pa · m3/sec (He)

Actuation

 N/A Hybrid

Valve Designation

 N/A 3 Port

Dimensions

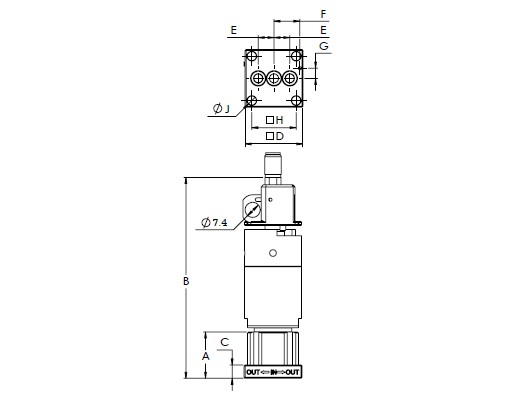

2LNTHB_Tech1

A

 N/A 0.89 in22.8 mm

B

 N/A 4.4 in111 mm

C

 N/A 0.25 in6.6 mm

D

 N/A 1.12 in28.4 mm

E

 N/A 0.3 in7.75 mm

F

 N/A 0.5 in12.7 mm

G

 N/A 0.19 in5.0 mm

H

 N/A 0.85 in21.74 mm

J

 N/A 0.17 in4.4 mm
