Technical Specs

Type

 N/A Union Connector

Conn.1 Size

 N/A 5/8”

Connector Type

 N/A Let-Lok® Tube Fitting

Conn.2 Size

 N/A 3/8”

Body Material

 N/A Stainless Steel 316

Dimensions

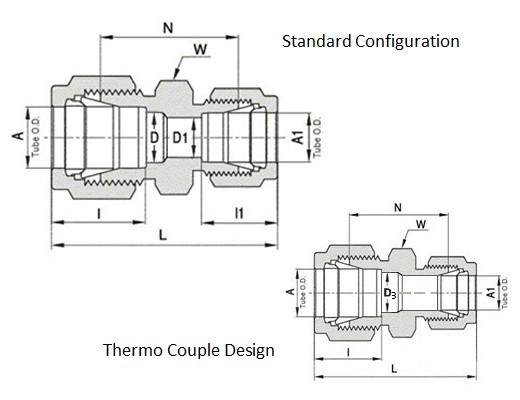

763L_BS_Tech1

A

 N/A 5/8 in15.87 mm

A1

 N/A 3/8 in9.52 mm

D

 N/A 0.50 in12.7 mm

D1

 N/A 0.28 in7.11 mm

D3

 N/A 0.50 in12.7 mm

I

 N/A 0.96 in24.4 mm

I1

 N/A 0.66 in16.8 mm

L

 N/A 1.94 in49.27 mm

N

 N/A 1.25 in31.75 mm

W

 N/A 15/16 in
