Technical Specs

Type

 N/A Union Connector

Conn.1 Size

 N/A 5/8”

Connector Type

 N/A Let-Lok® Tube Fitting

Conn.2 Size

 N/A 1/2”

Body Material

 N/A Stainless Steel 316

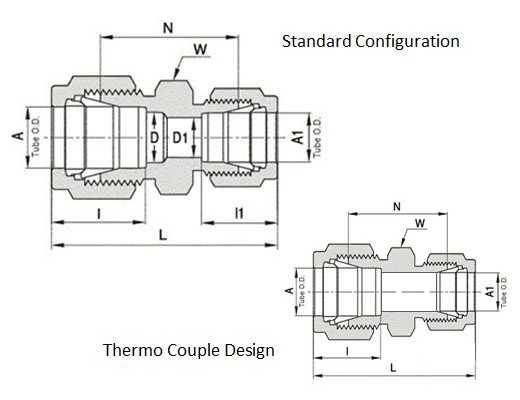

Dimensions


763L_BAS_Tech1

A

 N/A 5/8 in15.87 mm

A1

 N/A 1/2 in12.7 mm

D

 N/A 0.50 in12.7 mm

D1

 N/A 0.41 in10.41 mm

I

 N/A 0.96 in24.4 mm

I1

 N/A 0.9 in22.9 mm

L

 N/A 2.05 in52.07 mm

N

 N/A 1.25 in31.75 mm

W

 N/A 15/16 in
