Technical Specs

Type

 N/A Tube Adapter

Tube Stub Size

 N/A 10 mm

Conn.2 Size

 N/A 1/4”

Conn.2 Type

 N/A Socket Weld

Body Material

 N/A Stainless Steel 316

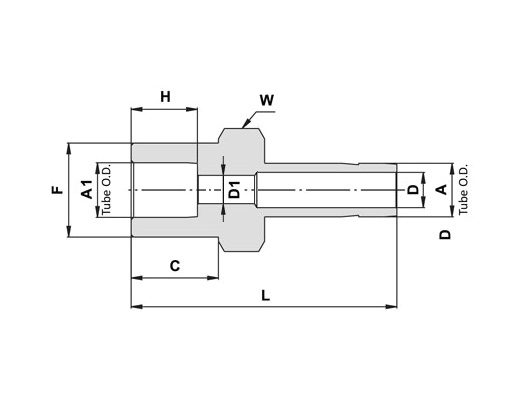

Dimensions


739LW_BS_Tech1

A

 N/A 10 mm

A1

 N/A 1/4 in

C

 N/A 10.4 mm

D

 N/A 7.1 mm

D1

 N/A 4.80 mm

F

 N/A 11.2 mm

H

 N/A 7.9 mm

L

 N/A 34.0 mm

W

 N/A 9/16 in
