Unit of Measure

Technical Specs

Type

 Tube Adapter

Tube Stub Size

 3/8”

Conn.2 Size

 9/16”-18

Conn.2 Type

 Male SAE/MS Thread

Body Material

 Brass

O-Ring

 906 Fluorocarbon FKM 90 Duro.

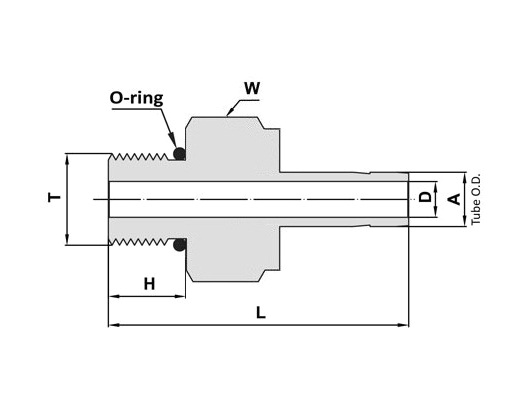

Dimensions


739LMOB_AB_Tech1

A

 3/8 in9.52 mm

D

 0.27 in6.85 mm

H

 0.39 in9.9 mm

L

 1.52 in38.61 mm

T

 9/16-18 UNF

W

 11/16 in17.5 mm
