Technical Specs

Type

 N/A Socket Weld Connector

Let-Lok_Size

 N/A 1/8”

Connector Type

 N/A Let-Lok® Tube Fitting

Conn.2 Size

 N/A 1/8”

Conn.2 Type

 N/A Socket Weld

Body Material

 N/A Stainless Steel 316

Dimensions

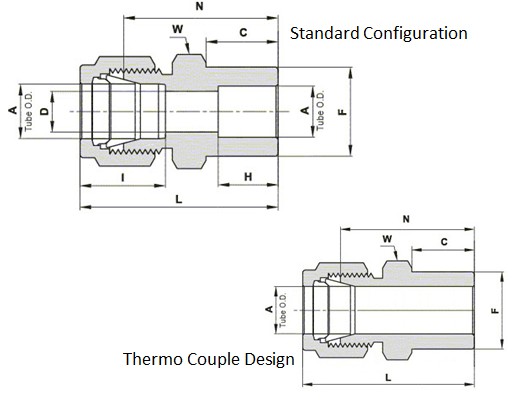

768LW_S_Tech1

A

 N/A 1/8 in3.17 mm

C

 N/A 0.34 in8.64 mm

D

 N/A 0.09 in2.28 mm

F

 N/A 0.31 in7.87 mm

H

 N/A 0.25 in6.35 mm

I

 N/A 0.5 in12.7 mm

L

 N/A 1.14 in28.96 mm

N

 N/A 0.88 in22.35 mm

W

 N/A 7/16 in
