Technical Specs

Type

 N/A Pipe Weld Connector

Let-Lok_Size

 N/A 3/8”

Connector Type

 N/A Let-Lok® Tube Fitting

Conn.2 Size

 N/A 3/8”

Conn.2 Type

 N/A Pipe Weld

Body Material

 N/A Stainless Steel 316

Dimensions

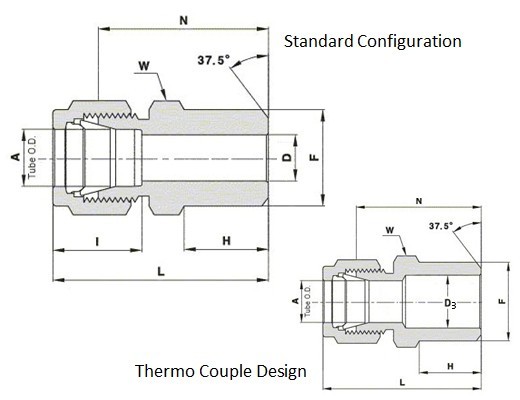

768LN_BS_Tech1

A

 N/A 3/8 in9.52 mm

D

 N/A 0.28 in7.11 mm

D3

 N/A 0.39 in9.8 mm

F

 N/A 3/8 in17.1 mm

H

 N/A 0.56 in14.22 mm

I

 N/A 0.66 in16.8 mm

L

 N/A 1.57 in39.87 mm

N

 N/A 1.28 in32.51 mm

W

 N/A 11/16 in
