Unit of Measure

Technical Specs

Type

 Male Connector

Let-Lok Size

 1/16”

Connector Type

 Let-Lok® Tube Fitting

Male Size

 5/16”-24

Male Type

 O-Seal UNF Thread

Body Material

 Brass

O-Ring

 011 Buna 70 Duro.

Dimensions

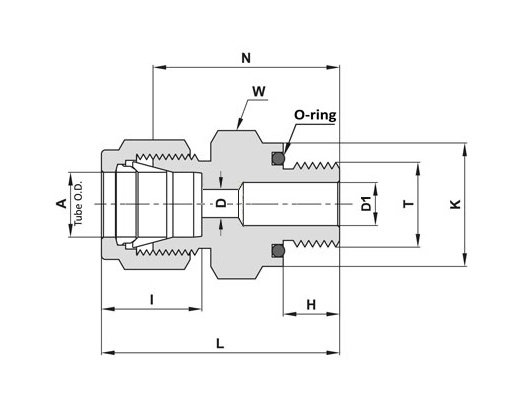

768LO_BXB_Tech1

A

 1/16 in1.58 mm

D

 0.05 in1.27 mm

D1

 0.09 in2.4 mm

H

 0.34 in8.63 mm

I

 0.34 in8.6 mm

K

 0.55 in14 mm

L

 1.05 in26.67 mm

N

 0.9 in22.86 mm

T

 5/16-24 UNF

W

 9/16 in
