Unit of Measure

Technical Specs

Type

 N/A Male Connector

Let-Lok Size

 N/A 1/4”

Connector Type

 N/A Let-Lok® Tube Fitting

Male Size

 N/A 3/4”

Male Type

 N/A NPT Thread

Body Material

 N/A Brass

Dimensions

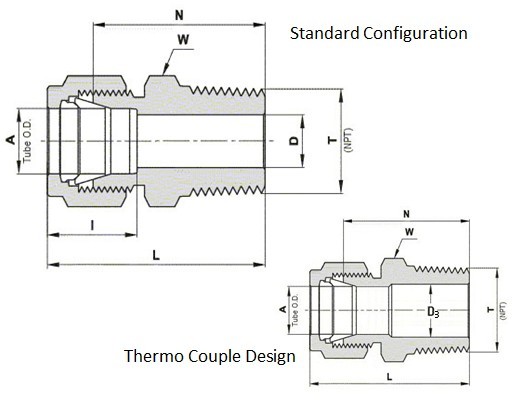

768L_ABB_Tech1

A

 N/A 1/4 in6.35 mm

D

 N/A 0.19 in4.82 mm

D3

 N/A 0.62 in15.75 mm

I

 N/A 0.6 in15.2 mm

L

 N/A 1.82 in46.22 mm

N

 N/A 1.53 in38.86 mm

T

 N/A 3/4 in

W

 N/A 1-1/16 in
