Technical Specs

Type

 N/A Female Connector

Let-Lok Size

 N/A 1/8”

Connector Type

 N/A Let-Lok® Tube Fitting

Female Size

 N/A 1/4”

Female Type

 N/A BSPP Thread

Body Material

 N/A Stainless Steel 316

Dimensions

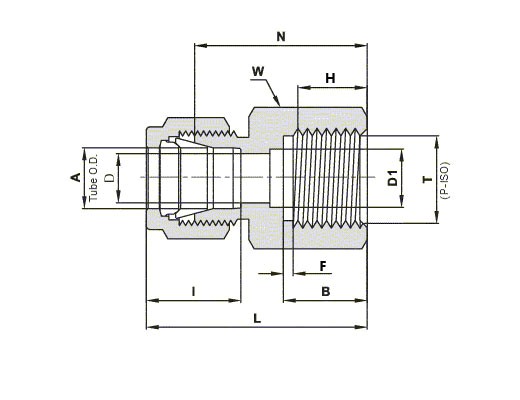

766LG_AS_Tech1

A

 N/A 1/8 in3.17 mm

B

 N/A 0.51 in13 mm

D

 N/A 0.09 in2.3 mm

D1

 N/A 0.22 in5.5 mm

F

 N/A 0.06 in1.6 mm

H

 N/A 0.37 in9.5 mm

I

 N/A 0.5 in12.7 mm

L

 N/A 1.39 in35.3 mm

N

 N/A 1.13 in28.7 mm

T

 N/A G-1/4

W

 N/A 3/4 in
