Technical Specs

Type

 N/A Flare Bulkhead Union

Sleeve Size

 N/A 1/4”

Material

 N/A Stainless Steel 316

S.A.E.

 N/A 070601

Body

 N/A Bulkhead for 1/4” or 6mm

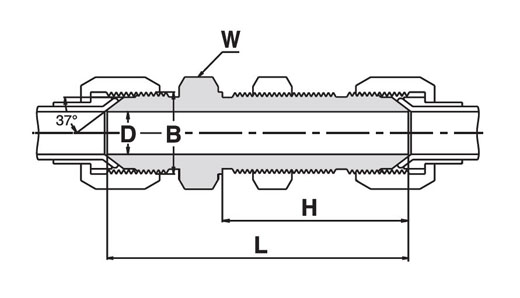

Dimensions


774HFL_Tech1

B

 N/A 7/16-20 in

D

 N/A 0.172 in4.4 mm

H

 N/A 1.20 in30.5 mm

L

 N/A 2.07 in52.6 mm

W

 N/A 11/16 in
