Unit of Measure

Technical Specs

Type

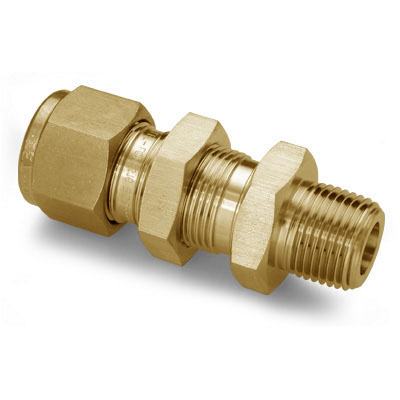

 Bulkhead Male Connector

Connector Type

 Bulkhead Fitting

Let-Lok Size

 3/8”

Conn.1 Type

 Let-Lok® Tube Fitting

Male NPT Size

 1/2”

Conn.2 Type

 Male NPT Thread

Body Material

 Brass

Dimensions


774LM_AB_Tech1

A

 3/8 in9.52 mm

D

 0.28 in7.11 mm

D1

 0.37 in9.50 mm

L

 2.51 in63.75 mm

L1

 1.45 in36.83 mm

N

 2.22 in56.39 mm

N1

 1.16 in29.46 mm

Ph

 37/64 in14.68 mm

Pw

 0.44 in11.17 mm

T

 1/2 in

W

 7/8 in

W1

 3/4 in
