Unit of Measure

Technical Specs

Type

 N/A Short Bulkhead to Let-Lok®

Face Seal Size

 N/A 1/4”

Connection 2

 N/A Let-Lok® Tube Fitting 1/4”

Body Material

 N/A SS 316L

Surface Finishing

 N/A Without Electropolish

Bulkhead Length

 N/A Short

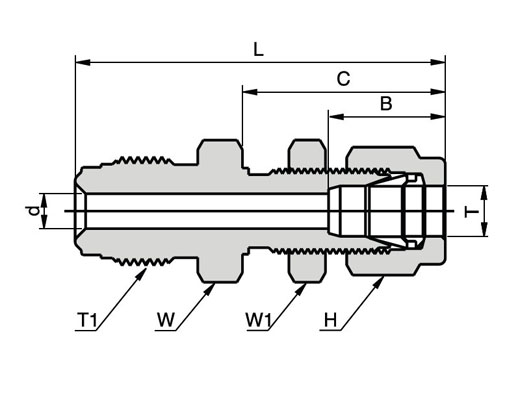

Dimensions


SBUL_Tech1

B

 N/A 0.60 in15.2 mm

C

 N/A 1.05 in26.7 mm

d

 N/A 0.18 in4.6 mm

G

 N/A 29/64 in

H

 N/A 9/16 in

L

 N/A 1.88 in47.8 mm

T

 N/A 1/4 in

W

 N/A 5/8 in
