Technical Specs

Type

 N/A Bulkhead to Let-Lok®

Face Seal Size

 N/A 1/2”

Connection 2

 N/A Let-Lok® Tube Fitting 1/2”

Body Material

 N/A SS 316L

Surface Finishing

 N/A Without Electropolish

Bulkhead Length

 N/A Long

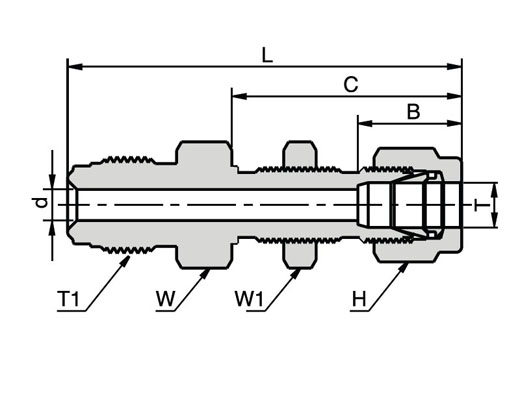

Dimensions


BUL_Tech1

B

 N/A 0.90 in22.9 mm

C

 N/A 1.45 in41.9 mm

d

 N/A 0.40 in10.2 mm

G

 N/A 49/64 in

L

 N/A 2.74 in69.9 mm

T

 N/A 1/2 in

W

 N/A 15/16 in
