Unit of Measure

Technical Specs

Type

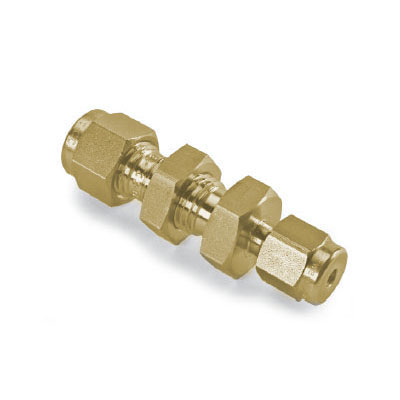

 Bulkhead Union

Connector Type

 Bulkhead Fitting

Size 1

 5/8”

Connection Type

 One-Lok® Tube Fitting

Size 2

 3/8”

Body Material

 Brass

Dimensions


775HL_B_Tech1

A

 5/8 in15.87 mm

A1

 3/8 in9.52 mm

D

 0.28 in7.11 mm

I

 0.96 in24.4 mm

I1

 0.66 in16.8 mm

L

 2.75 in69.85 mm

L1

 1.68 in42.67 mm

N

 2.06 in52.32 mm

N1

 1.28 in32.51 mm

Ph

 57/64 in22.62 mm

Pw

 0.5 in12.7 mm

W

 1-1/16 in
