Unit of Measure

Technical Specs

Type

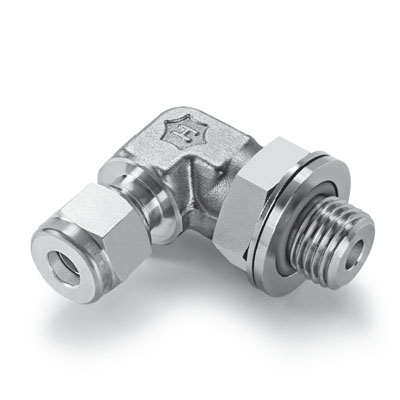

 Positionable Male Elbow (45/90)

Connector Type

 Positionable Fitting

Connection Type

 Possitionable Let-Lok®

Let-Lok Size

3/8”

Male Size

 3/8”

Male Type

 BSPP Thread

Elbow Angel

 90 º

Body Material

 Stainless Steel 316

O-Ring

 113 Fluorocarbon FKM 90 Duro.

Dimensions


769LG_CS_Tech1

A

 3/8 in9.52 mm

D

 0.28 in7.1 mm

D1

 0.31 in7.9 mm

E

 1.31 in33.3 mm

E1

 1.46 in37.1 mm

I

 0.66 in16.8 mm

L

 0.37 in9.4 mm

M

 1.04 in26.4 mm

N

 1.02 in25.91 mm

T

 G-3/8-19

W

 13/16 in20.6 mm

Wa

 7/8 in
