Unit of Measure

Technical Specs

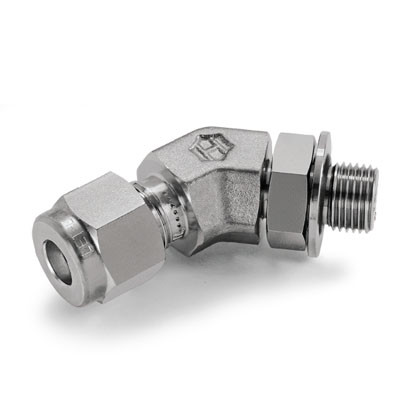

Type

Positionable Male Elbow (45/90)

Connector Type

Positionable Fitting

Connection Type

Possitionable Let-Lok®

Let-Lok Size

6 mm

Male Size

1/8”

Male Type

BSPP Thread

Elbow Angel

45 º

Body Material

Stainless Steel 316

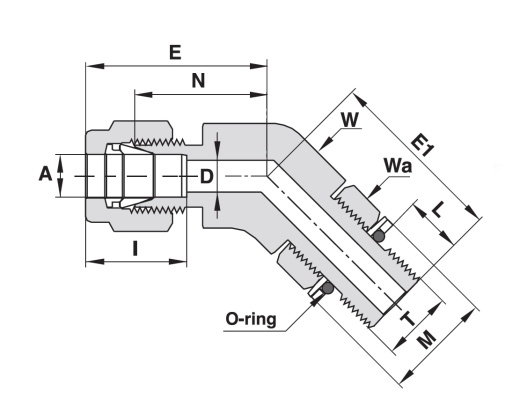

Dimensions


769LAG_S_Tech1

A

6 mm

E

24.9 mm

E1

24 mm

I

15.3 mm

L

8.1 mm

M

17.3 mm

N

17.5 mm

T

G-1/8-28

W

9/16 in14.3 mm

Wa

9/16 in
