Technical Specs

Type

 N/A H Series - 5 deg Stem Taper

Max Pressure

 N/A 69 bar1000 psi

Connection Size

 N/A 1/4”

Outlet Connection

 N/A Let-Lok® Tube Fitting

Inlet Connection

 N/A Let-Lok® Tube Fitting

Body Material

 N/A Stainless Steel 316

Max CV

 N/A 0.13

Valve Shape

 N/A Straight

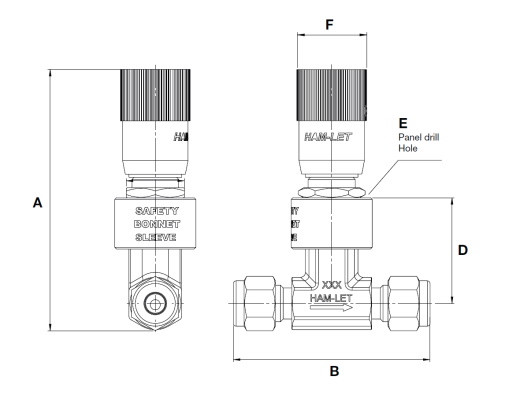

Dimensions


H1300SSL1-4S_Tech1

A

 N/A 3.40 in86.4 mm

B

 N/A 2.34 in59.4 mm

D

 N/A 1.26 in32 mm

E

 N/A 0.58 in14.8 mm

F

 N/A 0.83 in21.1 mm

Orifice

 N/A 0.13 in3.3 mm
