Technical Specs

Type

 High Pressure‎

Size

 1/4”

Connection Size

 1/4”

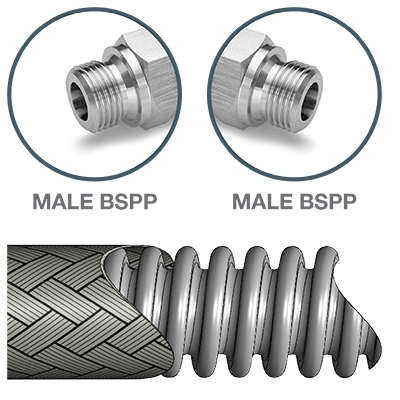

Connection 1 Type

 Male BSPP

Hose Size (I.D.)

 1/4”

Connection 2 Type

 Male BSPP

Tube Material

 St.St 316

Braid Material

 St.St 304

UNSPCS

 40142007

Temperature Range

 -425-1300ºF (-254-705ºC)

Connection Material

 Stainless Steel 316L

No of Braids

 SIngle

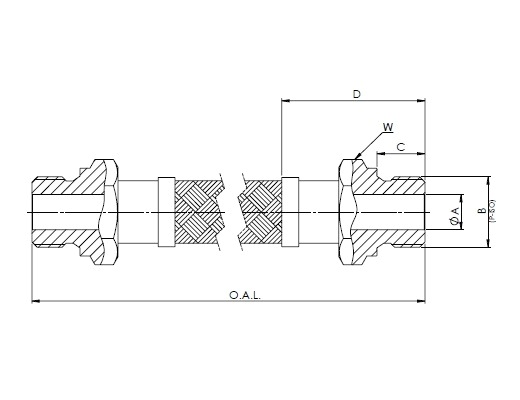

Dimensions


PHHMG1_Tech1

A

 0.19 in4.8 mm

B

 1/4 in

C

 0.44 in11.2 mm

D

 1.56 in39.73 mm

W

 3/4 in
