Technical Specs | Dimensions

Technical Specs

Type	N/A High Pressure‎
Size	N/A 1/4”
Connection Size	N/A 1/4”

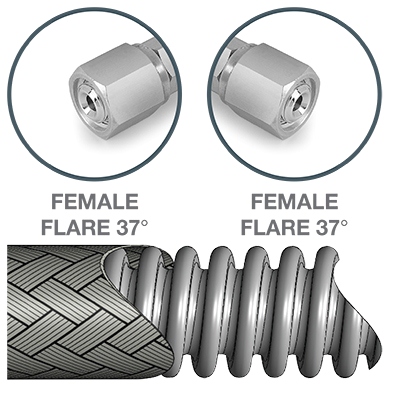

Connection 1 Type	N/A Female Flare 37º
Hose Size (I.D.)	N/A 1/4”
Connection 2 Type	N/A Female Flare 37º
Tube Material	N/A St.St 316
Braid Material	N/A St.St 304
UNSPCS	N/A 40142007
Temperature Range	N/A -425-1300ºF (-254-705ºC)
Connection Material	N/A Stainless Steel 316L
No of Braids	N/A SIngle

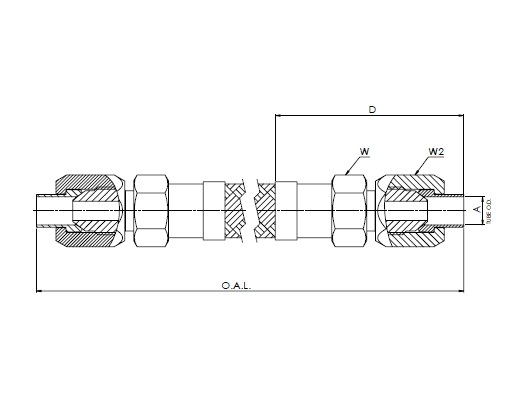

Dimensions

PHHFF1_Tech1
