Request Information
Unit of Measure

Technical Specs

Type

 N/A High Pressure‎

Size

 N/A 1/2”

Connection Size

 N/A 1/2”

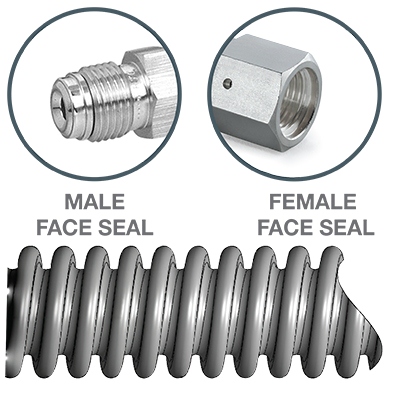

Connection 1 Type

 N/A Male Face Seal

Hose Size (I.D.)

 N/A 1/2”

Connection 2 Type

 N/A Female Face Seal

Tube Material

 N/A St.St 316

UNSPCS

 N/A 40142007

Temperature Range

 N/A -425-1300ºF (-254-705ºC)

Connection Material

 N/A Stainless Steel 316L

No of Braids

 N/A None

Dimensions


PHHGMGF_Tech1

A

 N/A 0.4 in10.14 mm

A1

 N/A 7/8-14UNF-2B

B

 N/A 7/8-14UNF-2A

D

 N/A 2 in50.8 mm

D1

 N/A 2.56 in65.12 mm

W

 N/A 1-5/16 in
