Unit of Measure

Technical Specs

Type

 EVH - Low-Med Temp. Low Flow

Connection Size

 1/4”

Connection Type

 Let-Lok® Tube Fitting

Body Size

 1/4”

Max Pressure

 16.2 MPa2300 psi

CV

 0.1

Body Material

 Forged SS 316L

Leak Rate - Across Seat

 <= 3·10-10 Pa · m3/sec (He)

Leak Rate - Inboard

 <= 3·10-12 Pa · m3/sec (He)

Actuation

 Actuator

Dimensions

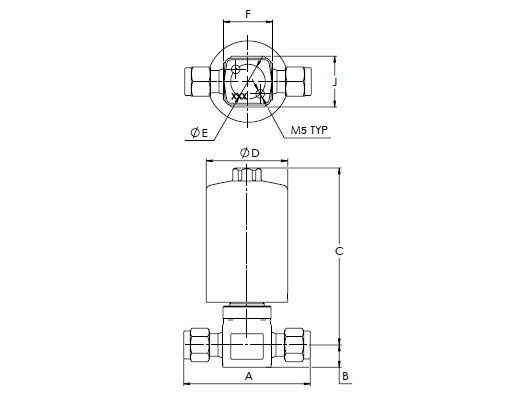

EVHCL_Tech1

A

 2.5 in63.5 mm

B

 0.43 in11 mm

C

 3.43 in87 mm

D

 1.57 in40 mm

E

 0.67 in17 mm

F

 0.94 in24 mm

J

 0.98 in25 mm
