Unit of Measure

Technical Specs

Type

 HMC - Low Temp. Med Flow (Bar Stock)

Connection Size

 1/4”

Outlet Connection

 Short Buttweld

Inlet Connection

 Short Buttweld

Body Size

 1/4”

Max Pressure

 2 MPa300 psi

CV

 0.25

Actuation Pressure

 60 to 90 psi (4 to 6 bar)

Body Material

 Bar Stock SS 316L

Temperature Range

 -10ºC to 60ºC

Leak Rate - Across Seat

 <= 3·10-9 atm · cc/sec (He)

Leak Rate - Inboard

 <= 3·10-11 atm · cc/sec (He)

Actuation

 Round Handle

Dimensions

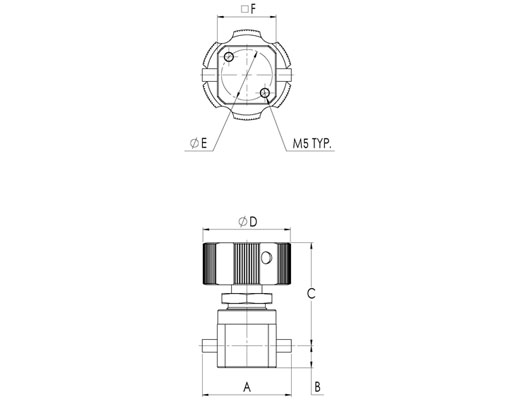

C2RWW_Tech1

A

 1.75 in44.4 mm

B

 0.43 in11 mm

C

 2.02 in51.4 mm

D

 1.77 in45 mm

E

 1 in25.4 mm

F

 1.16 in29.4 mm
