Technical Specs

Type

 N/A Straight

Connection Size

 N/A 18 mm

Body Size

 N/A 1/4”

Actuator Type

 N/A Spring Return

Body Material

 N/A Brass (up to 3000 psi)

Operating Pressure

 N/A 5-8 bar (73-116 psi)

Rotary Angle

 N/A 90º

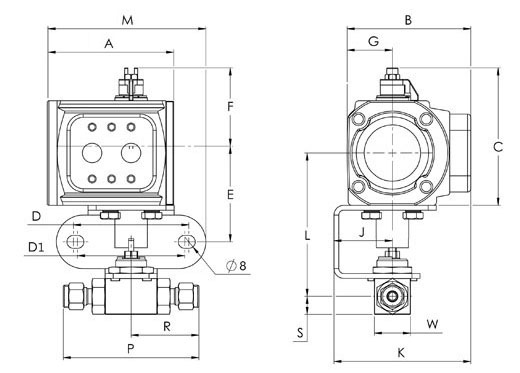

Dimensions


H6800BLS_AC_Tech1

D

 N/A 2.8 in71 mm

D1

 N/A 2.6 in66 mm

P

 N/A 4.04 in102.5 mm

R

 N/A 2.02 in51.25 mm

S

 N/A 0.63 in16 mm

W

 N/A 1.26 in32 mm

Orifice

 N/A 0.409 in10.3 mm
