Technical Specs

Type

 N/A Tube Buttweld

Connection Size

 N/A 25 mm

Connection Type

 N/A Extended Tube Buttweld

Body Material

 N/A Stainless Steel 316

CV

 N/A 38

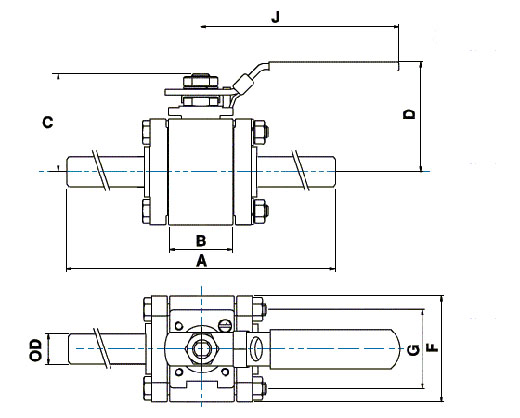

Dimensions


H580XTBW_Tech1

A

 N/A 6.35 in161.2 mm

B

 N/A 1.25 in31.8 mm

C

 N/A 2.23 in56.7 mm

D

 N/A 2.93 in74.5 mm

F

 N/A 2.36 in60 mm

G

 N/A 1.73 in44 mm

J

 N/A 5.94 in151 mm

OD

 N/A 1 in25.4 mm

Orifice

 N/A 0.87 in22.1 mm
