Unit of Measure

Technical Specs

Type

 N/A Pipe Buttweld

Connection Size

 N/A 3/8”

Connection Type

 N/A Pipe Butt Weld

Body Material

 N/A Stainless Steel 316

CV

 N/A 10

Dimensions

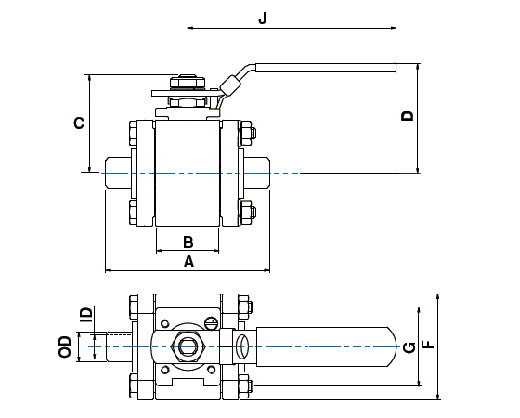

H580PBW_Tech1

A

 N/A 2.64 in67 mm

B

 N/A 0.81 in20.6 mm

C

 N/A 1.59 in40.5 mm

D

 N/A 2.22 in56.5 mm

F

 N/A 1.75 in44.4 mm

G

 N/A 1.26 in32 mm

J

 N/A 4.78 in121.5 mm

OD

 N/A 0.67 in17.1 mm

Orifice

 N/A 0.43 in11 mm
