Unit of Measure

Technical Specs

Type

 Straight

Connection Size

 1/8”

Outlet Connection

 Female NPT Thread

Inlet Connection

 Female NPT Thread

Max Pressure

 207 bar3000 psi

Body Material

 Brass

CV

 0.37

Handle Type

 Round Handle

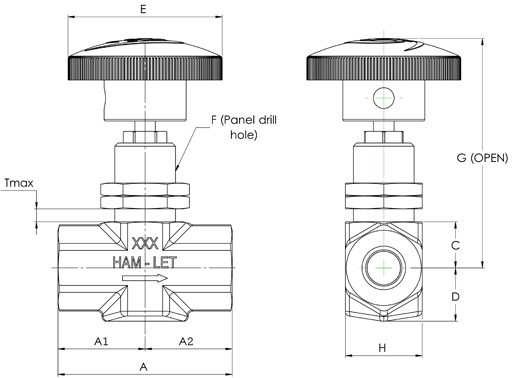

Dimensions


H310BNS_Tech1

A

 1.62 in41.2 mm

A1

 0.81 in20.6 mm

A2

 0.81 in20.6 mm

C

 0.39 in10 mm

D

 0.31 in7.95 mm

E

 1.38 in35.1 mm

F

 0.51 in13 mm

G

 2.5 in63.5 mm

H

 5/8 in15.9 mm

T

 0.39 in10 mm
