Technical Specs

Type

 N/A Angle

Connection Size

 N/A 3/8”

Outlet Connection

 N/A Female NPT Thread

Inlet Connection

 N/A Male NPT Thread

Max Pressure

 N/A 345 bar5000 psi

Body Material

 N/A Stainless Steel 316

CV

 N/A 0.73

Handle Type

 N/A Metal Bar

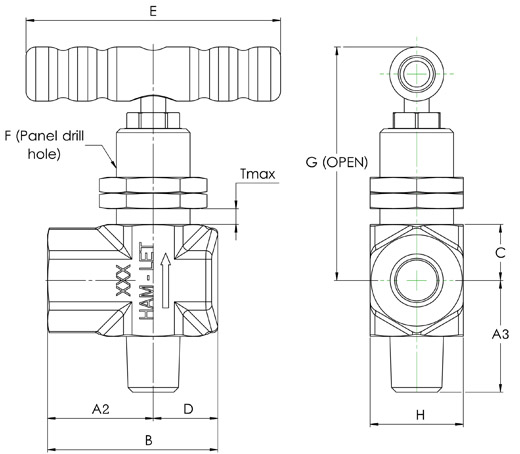

Dimensions


H385SSNAM_Tech1

A2

 N/A 1.1 in28 mm

A3

 N/A 1.12 in28.5 mm

B

 N/A 1.75 in44.5 mm

C

 N/A 0.56 in14.3 mm

D

 N/A 0.65 in16.5 mm

E

 N/A 2.56 in65 mm

F

 N/A 0.79 in20 mm

G

 N/A 2.63 in66.8 mm

H

 N/A 15/16 in23.8 mm

T

 N/A 0.49 in12 mm
