Technical Specs

Type

 N/A Angle

Connection Size

 N/A 1/8”

Outlet Connection

 N/A Female BSPT Thread

Inlet Connection

 N/A Female BSPT Thread

Max Pressure

 N/A 345 bar5000 psi

Body Material

 N/A Stainless Steel 316

CV

 N/A 0.37

Handle Type

 N/A Metal Bar

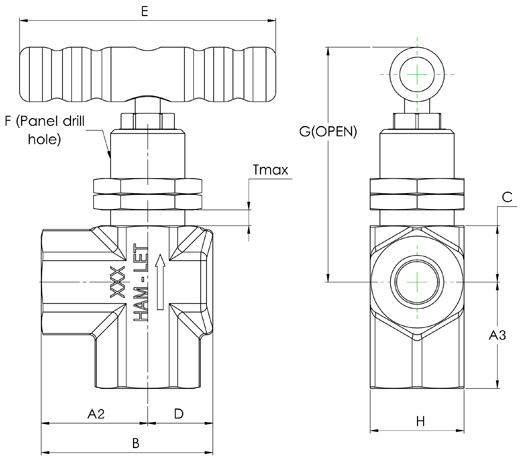

Dimensions


H310SSNAM_Tech1

A2

 N/A 0.81 in20.6 mm

A3

 N/A 0.81 in20.6 mm

B

 N/A 1.12 in28.5 mm

C

 N/A 0.39 in10 mm

D

 N/A 0.31 in7.95 mm

E

 N/A 1.97 in50 mm

F

 N/A 0.51 in13 mm

G

 N/A 2.2 in56 mm

H

 N/A 5/8 in15.9 mm

T

 N/A 0.39 in10 mm
