Technical Specs

Type

 N/A Male Elbow‎

One-Lok Size

 N/A 1/2”

Connector Type

 N/A One-Lok® Tube Fitting

Male Size

 N/A 3/4”

Male Type

 N/A NPT Thread

Body Material

 N/A Brass

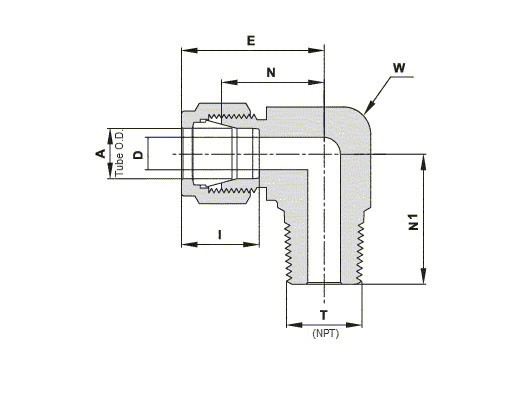

Dimensions


769HL_B_Tech1

A

 N/A 0.5 in12.7 mm

D

 N/A 0.41 in10.41 mm

E

 N/A 1.57 in39.88 mm

I

 N/A 0.9 in22.9 mm

N

 N/A 1.17 in29.71 mm

N1

 N/A 1.45 in36.83 mm

T

 N/A 3/4 in

W

 N/A 1-1/16 in27 mm
